Product Information :
Name :
เครื่องสังเคราะห์เปปไทด์/Peptide Synthesizer Category :
- เครื่องมือวิทยาศาสตร์ / สารเคมีและวัสดุภัณฑ์สำหรับห้องปฏิบัติการ
Sub - Category :
- Life Science
Brand :
CEM Corporation Model :
Liberty BlueProduct Type :
- สินค้า, ผลิตภัณฑ์
Short Description :
Peptide synthesizer. The Liberty Blue system's combination of microwave peptide synthesis along with rapid liquid handling offers several advantages over conventional synthesis conditions
Product Detail :
CEM Corporation is transforming the way chemists perform peptide synthesis once again with the introduction of the Liberty BlueTM automated microwave peptide synthesizer. More than just a facelift, the Liberty Blue system has been designed for maximized speed and efficiency. With 4-minute cycle times and a 90% solvent reduction, no other peptide synthesizer on the market can even come close to the performance of the Liberty Blue. Couple with that unparalleled peptide quality along with greater flexibility and improved reliability, Liberty Blue is the system of choice for all your peptide synthesis needs.
The Liberty Blue system's combination of microwave peptide synthesis along with rapid liquid handling offers several advantages over conventional synthesis conditions including:
- Shorter reactions resulting in only 4-minute cycle times
- Higher purity peptides than conventional synthesis
- Use of standard, inexpensive peptide synthesis reagents
- Synthesis of peptides impossible to synthesize under conventional conditions
- License included allowing the use of microwave energy for both the coupling and deprotection steps
Advantages
Remarkably Fast
- 4 minute cycle time
- Rapid reagent addition
- Optimized synthesis methods
- >80% time reduction compared to 1st generation microwave synthesizers
- Difficult peptides such as A-beta in hours rather than days
Maximum Efficiency
- Up to 90% solvent reduction
- Less reagent usage
- No priming required
- Judicious use of solvent for washing
- Accurate and precise reagent addition
Benefits of Microwave Control
- Only system capable of using microwave energy for both the coupling and deprotection steps
- Complete control over power, temperature and time for each step
- Rapidly change temperature from one stage to the next
- Easily synthesize peptides with temperature sensitive amino acids without unwanted side reactions

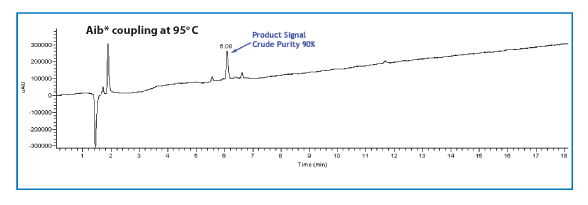

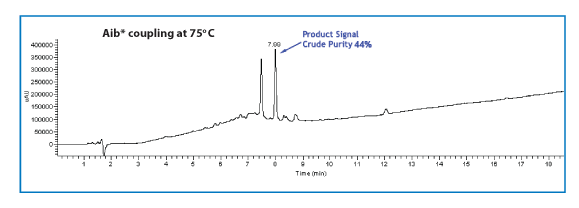

Peptide Sequence: GEQKLGAib*AibASEEDLG-NH2
Flexibility
- Flex-add™ technology eliminates need for sample loops and allows infinite volume delivery options
- Synthesis conditions (temperature, power, and time) can be controlled for each step of every amino acid cycle
- 27 AA positions provides ample positions for unusual amino acids or reagents
- Unlimited number of couplings with amino acid stock solutions
- 3 reaction vessel sizes – 10, 30, and 125-mL to cover the full synthesis scale range
- Scale range from 0.02 to 5 mmol
- Resin loading option allows high throughput peptide synthesis
- Optional cleavage accessory for rapid peptide cleavage and deprotection
Simplicity
- 50% fewer processing valves
- Easy to use software with default methods
- Straightforward method customization for unique peptides or reagents
- Usage and reagent calculators make reagent preparation simple
- Fast and easy system setup with a maximum of only 31 bottles to install on the system
Reliability
- All valves are backpurged immediately after use eliminating the need for extra washing and preventing clogging issues
- Reduced routine maintenance with fewer valves and the elimination of optical sensors for reagent addition
- Flex-add technology is not susceptible for bubbles unlike optical sensor
- Uninterrupted pathway allows fast and efficient purging
- Pressure detection for all chemical transfers
- Detailed run history and error reporting
- Waste level detection
- Best in class service and support
Optional Accessories

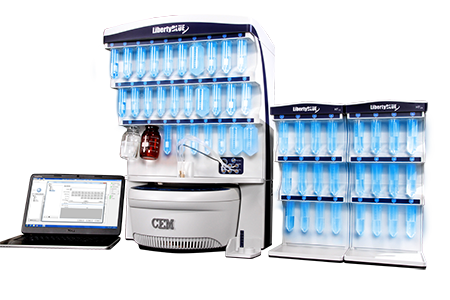

Resin Loading Accessory
High Throughput Microwave Peptide Synthesis
To increase the throughput of the Liberty Blue system an optional modular resin loading option is available that will allow up to 24 peptides to be synthesized sequentially. The resin loader comes in a 12-position module with an additional 12-position module that can be coupled to it. With the rapid 4-minute cycle time along with the potential to synthesize 24 peptides unattended overnight, the Liberty Blue system provides throughput of peptides that is comparable to that of conventional high throughput systems but with considerably better purity.
Advantages of Fast Sequential Peptide Synthesis
To increase the throughput of the Liberty Blue system an optional modular resin loading option is available that will allow up to 24 peptides to be synthesized sequentially. The resin loader comes in a 12-position module with an additional 12-position module that can be coupled to it. With the rapid 4-minute cycle time along with the potential to synthesize 24 peptides unattended overnight, the Liberty Blue system provides throughput of peptides that is comparable to that of conventional high throughput systems but with considerably better purity.
Advantages of Fast Sequential Peptide Synthesis
- Single Peptides Fast - 1 to 2 hours for standard length peptides
- Less Complex Instrumentation - easier to maintain and operate
- Eliminates Purification Bottleneck - purify peptides as soon as they are completed
- Precise Control at each Step - unique methods can be run for each peptide
- Higher Purity Peptides - reduces purification costs

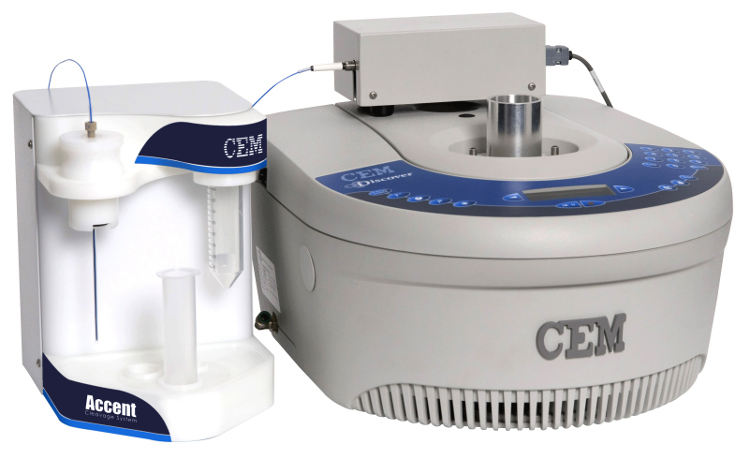

Isolate Peptides Cleanly and in a Fraction of the TimeThe Accent for Peptide Cleavage is an isolated liquid handling module designed for performing the peptide cleavage step with a Discover microwave as a stand-alone system. The isolated module provides the advantage of protecting the Liberty Blue system from the harsh reagents required for the cleavage all while allowing the use of microwave irradiation to provide high quality peptides in excellent yields in a fraction of the time.
- Full peptide cleavage in 30 minutes or less
- Microcleavage in as little as 2 minutes
- Improved peptide purity
- Increased peptide yield
